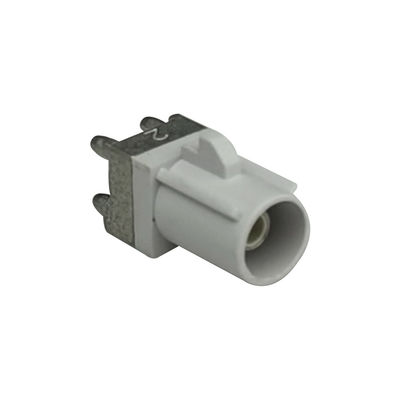

FAKRA PCB Connector 2291392-4 Pcba Components Automotive Wire Harness Connector Code D
제품 상세 정보
| 임피던스 | 50Ω | 빈도 | 6 기가헤르츠에 대한 DC |
|---|---|---|---|
| 절연저항 | ≥1000 MΩ | 테스트 전압 | 250 Ｖ rms |
| 작동 전압 | 100 Ｖ rms | 전력 전류 | ≤1.5A DC |
| 작동 온도 | -40°C ~ 105°C | 가장 밝은 부분 | PCB FAKRA HSD 커넥터, 암 FAKRA HSD 커넥터, 자동차 FAKRA Z 암 |
제품 설명
Product Description
HSD 4+2 Pin Female Code D For Automotive Power HSD PCB Connector
Description:
HSD PCB connector connectors provide connectivity solutions for automotive infotainment modules, cameras, GPS, display devices, and remote vehicles. RF High Speed Data (HSD) cable assembly is a 100Ω connection system for differential and digital data transmission. HSD connector products are designed for high speed data transmission to meet automotive data rates up to 6GHz.
Key Feature:
1. Single solution for digital transmission standards
2. Female contacts with tight entries to prevent mismatches and stubs
3. 100Ω impedance
4. Combined with the following devices
-Low Voltage Differential Signaling (LVDS)
-Gigabit Video Interface (GVIF)
-USB
-IEEE 1394
-Ethernet
5.MOQ:20 PCS
Technical Specifications:
| Material | |
| Housing | PA |
| Center Pin | Copper Alloy |
| Outer contact | Zinc Alloy |
| Insulator | HTN |
| Electrical Performance | |
| Impedance | 100 Ω |
| Frequency Range | DC to 2 GHz |
| Return Loss | ≥20 dB to 1 GHz ≥17 dB to 2 GHz |
| Insertion Loss | ≤0.1 dB to 2 GH |
| Insulation Resistance | ≥ 1000 MΩ |
| Center Contact Resistance | ≤ 8mΩ |
| Test Voltage | 250 V rms |
| Working Voltage | 100 V rms |
| Contact Current | ≤ 1.5 A DC |
| Mechanical Performance | |
| Mating Cycles | ≥ 25 Time |
| Engagement Force | ≤ 30 N |
| Disengagement Force | ≥5 N |
| Retention Force Latch | ≥ 110 N |
| Temperature Range | -40 °C ~ +105 °C |
